The following example calculates the OWASP request threat score for an incoming request. The OWASP managed ruleset configuration is the following:
- OWASP Anomaly Score Threshold: High - 25 and higher
- OWASP Paranoia Level: PL3
- OWASP Action: Managed Challenge
This table shows the progress of the OWASP ruleset evaluation:
| Rule ID | Paranoia level | Rule matched? | Rule score | Cumulative threat score |
|---|---|---|---|---|
| – | – | – | – | 0 |
...1813a269 |
PL3 | Yes | +5 | 5 |
...ccc02be6 |
PL3 | No | – | 5 |
...96bfe867 |
PL2 | Yes | +5 | 10 |
...48b74690 |
PL1 | Yes | +5 | 15 |
...3297003f |
PL2 | Yes | +3 | 18 |
...317f28e1 |
PL1 | No | – | 18 |
...682bb405 |
PL2 | Yes | +5 | 23 |
...56bb8946 |
PL2 | No | – | 23 |
...e5f94216 |
PL3 | Yes | +3 | 26 |
| (...) | (...) | (...) | (...) | (...) |
...f3b37cb1 |
PL4 | (not evaluated) | – | 26 |
Final request threat score: 26
Since 26 >= 25 — that is, the threat score is greater than the configured score threshold — Cloudflare will apply the configured action (Managed Challenge). If you had configured a score threshold of Medium - 40 and higher, Cloudflare would not apply the action, since the request threat score would be lower than the score threshold (26 < 40).

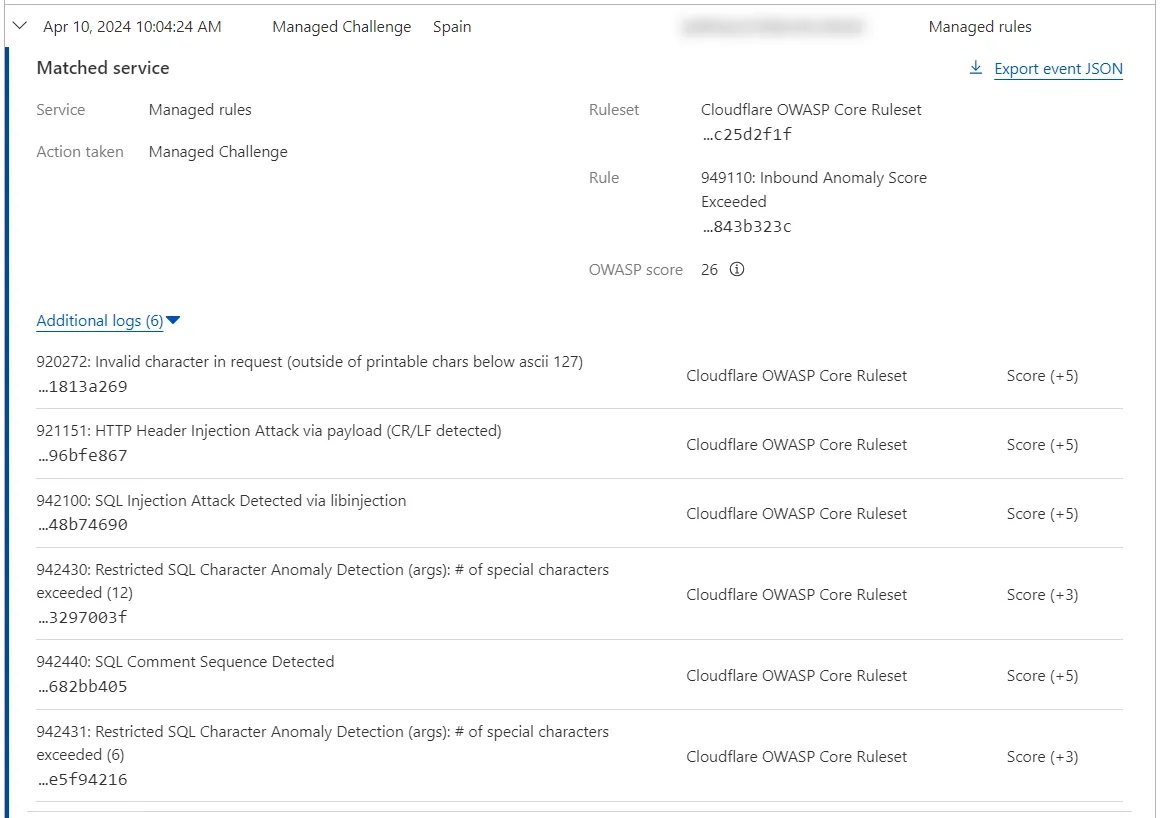

Sampled logs in Security Events would display the following details for the example incoming request handled by the OWASP Core Ruleset:
In sampled logs, the rule associated with requests mitigated by the Cloudflare OWASP Core Ruleset is the last rule in this managed ruleset: 949110: Inbound Anomaly Score Exceeded, with rule ID
